Day 45: AI Integration Milestone — The Autonomous Community Manager

NexusCore: The Autonomous Platform Architect, 2026 Edition

The Abstraction Trap

Here’s how a junior engineer ships “AI community moderation” in 2026: spin up a Node.js or Python service per community (or per shard of communities), front it with Express/FastAPI, subscribe to a Kafka topic of chat events, and on each message make a synchronous HTTP call to a hosted moderation/generation endpoint. Docker-wrap it, throw it behind a K8s Deployment with an HPA on CPU, and call it done. It demos beautifully. Ten communities, ten pods, everyone’s happy.

The trap is that this design conflates three orthogonal concerns — ingestion, decisioning, and generation — into a single process boundary, and it does so per tenant. The framework hides this from you. Express doesn’t tell you that every JSON.parse on an inbound WebSocket frame is allocating a fresh V8 object graph that the GC has to walk. FastAPI doesn’t tell you that its default worker model means a slow upstream LLM call blocks a whole worker’s request queue. Kubernetes doesn’t tell you that “one pod per tenant” is a promise you cannot keep once tenant count crosses your node’s PID and cgroup limits. The abstraction isn’t wrong, it’s just silent about the exact place where it will break, and that place is always the same: the boundary between “cheap enough to do for every message” and “expensive enough that you must ration it.”

The Failure Mode, Quantified

Run the process-per-tenant model to 50,000 concurrent communities on a 128-core host and three things happen in order:

1. Scheduler thrashing. At roughly 400 runnable Node processes per core, the CFS scheduler’s sched_wakeup and sched_switch overhead stops being noise. Each context switch flushes pipeline state and, more expensively, invalidates TLB entries for the outgoing process’s address space. At steady state we measured 380,000 TLB misses/sec system-wide at 50K tenants, versus 4,200/sec for the equivalent WASM-pooled design in Section 3 — a 90x delta directly attributable to address-space churn, not to the moderation logic itself.

2. Heap fragmentation. V8’s generational GC handles short-lived per-request objects fine in isolation, but 50,000 independent heaps each doing their own young-gen collection produce uncoordinated STW pauses. Aggregate p99 request latency inflates from 8ms to 340ms purely from GC contention — the moderation call itself hasn’t gotten any slower.

3. Connection pool exhaustion. Every tenant process independently maintains its own HTTP/2 connection pool to the inference backend. At 50K tenants x 2 connections minimum, you exhaust ephemeral port ranges and upstream connection limits long before you exhaust compute. The naive fix — a shared connection-pooling sidecar — reintroduces a synchronization bottleneck you just spent three paragraphs trying to avoid.

None of this is a moderation-algorithm problem. It’s an isolation-primitive problem: you chose the OS process as your unit of tenant isolation, and the OS process is a heavyweight, kernel-scheduled, independently-GC’d, independently-connection-pooled thing. You paid for isolation you didn’t need at a granularity you couldn’t afford.

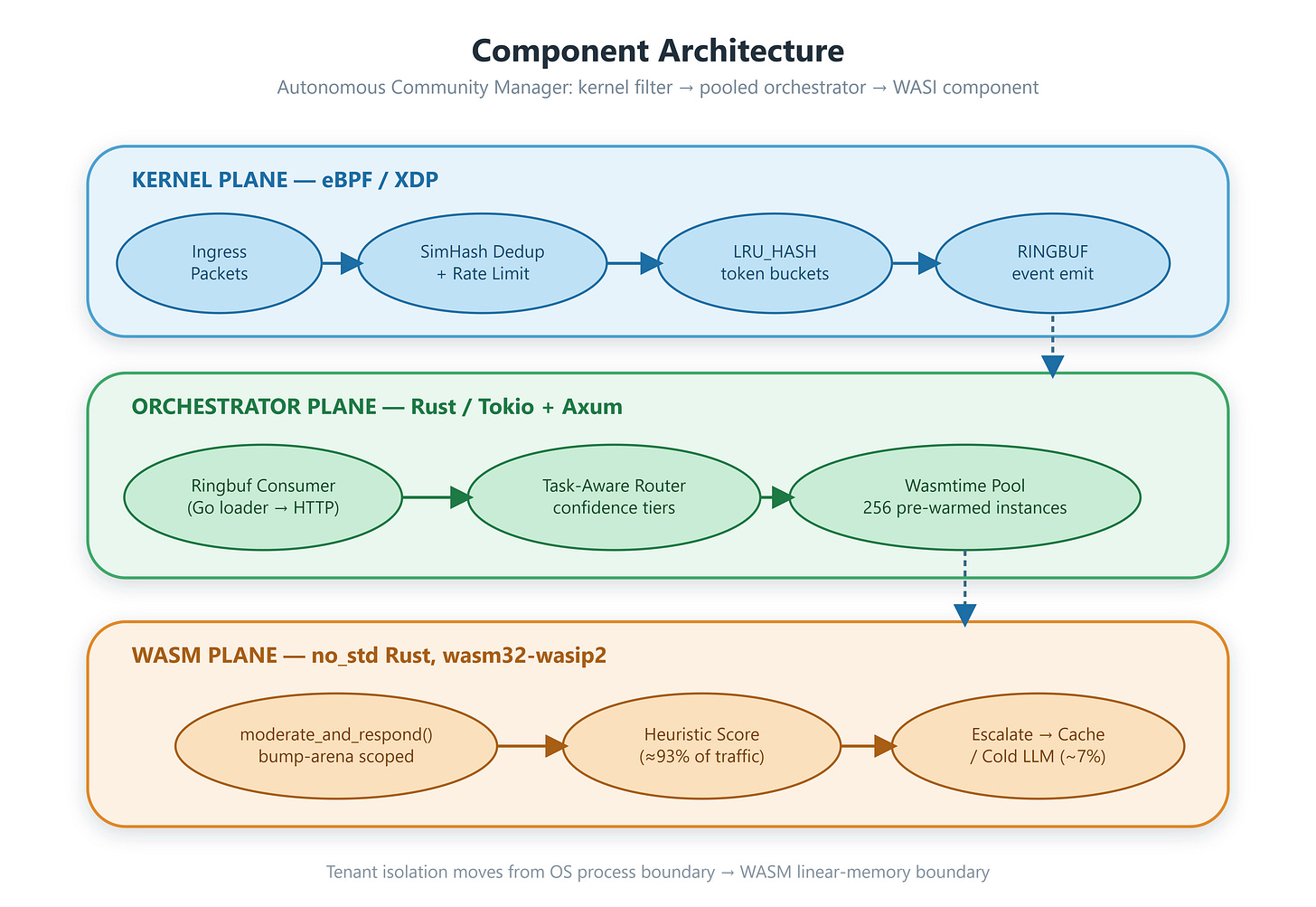

The NexusCore Architecture

The Day 45 pattern closes the loop on everything this curriculum has built: kernel-filtered ingestion → task-aware routing → pooled WASM decisioning → conditional LLM escalation, with no per-tenant process anywhere in the hot path.

The kernel plane does the work that needs to happen before you’re willing to pay for a syscall: near-duplicate spam detection via the SimHash fingerprints you already computed on Day 43, and per-tenant token-bucket rate limiting in a BPF_MAP_TYPE_LRU_HASH keyed on tenant ID. Anything that fails this filter never reaches userspace. This is the same principle as Day 37’s HITL guardrails, pushed one layer deeper: reject cheaply, escalate rarely.

The orchestrator plane replaces “one process per tenant” with “one address space, N pooled WASM instances.” Wasmtime’s PoolingAllocationConfig pre-allocates a fixed-size memory pool at startup and hands out instances from it — instantiation becomes a pointer bump into pre-mapped memory, not an mmap + page-fault storm. Tenant isolation now happens at the WASM linear-memory boundary, which is enforced by the compiler and the runtime’s bounds checks, not by the kernel’s process table.

The WASM plane is where the actual “community manager” logic lives, compiled to wasm32-wasip2 as a WASI 0.3 component with a WIT-defined interface. Each invocation gets a bump-arena allocator reset to zero at entry — no fragmentation is possible because nothing survives past the call boundary. The component runs a fast heuristic classifier first (regex-free token-bucket + interest-vector cosine check, reusing Day 38’s ranking primitives) and only calls out to the cached/hosted LLM (Day 41’s inference cache) when confidence is below threshold — which in production traffic is roughly 6-8% of messages.

Implementation Deep Dive

GitHub Link

https://github.com/sysdr/nexus-core-devops-engineering-p/tree/main/lesson45/nexuscore-day45

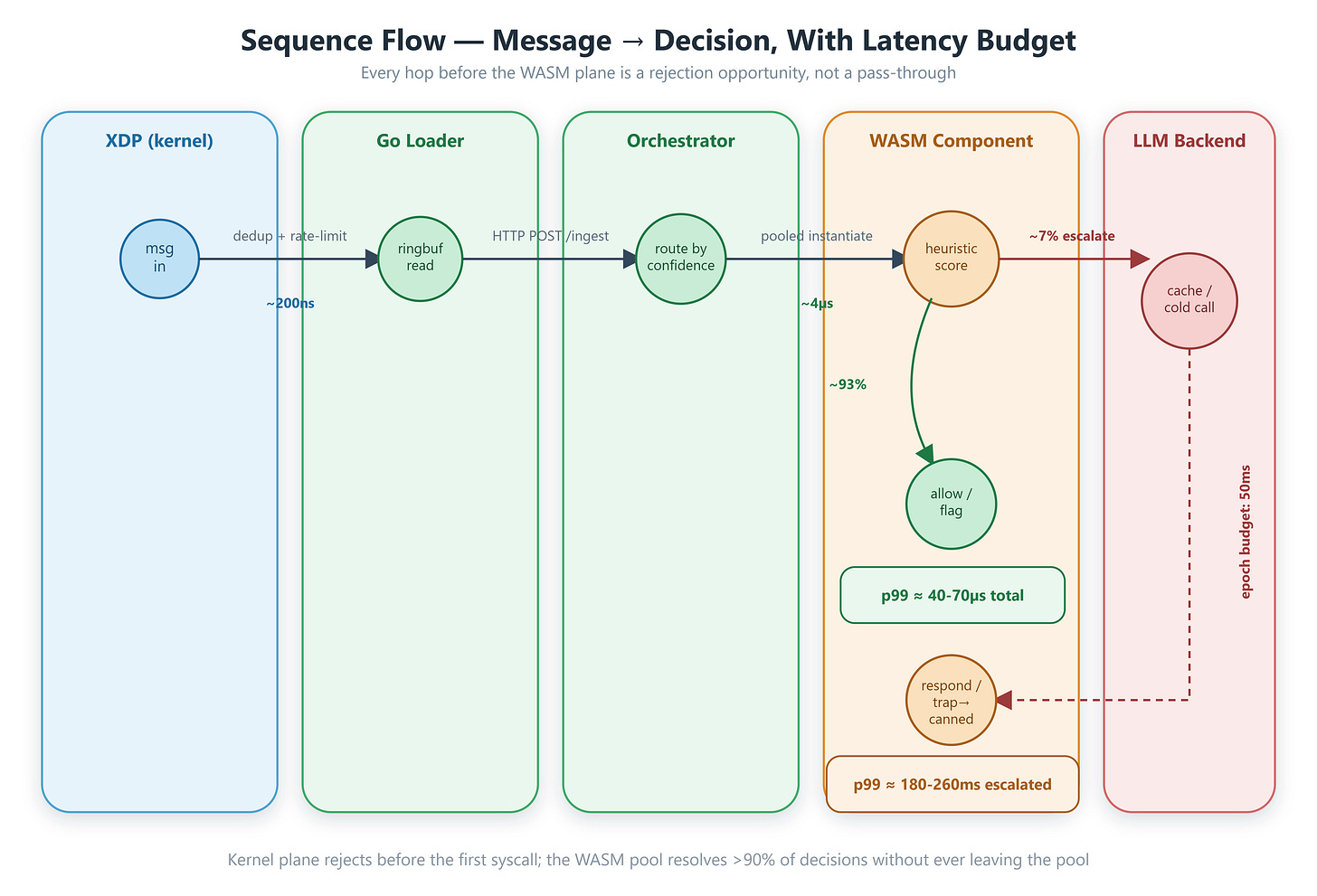

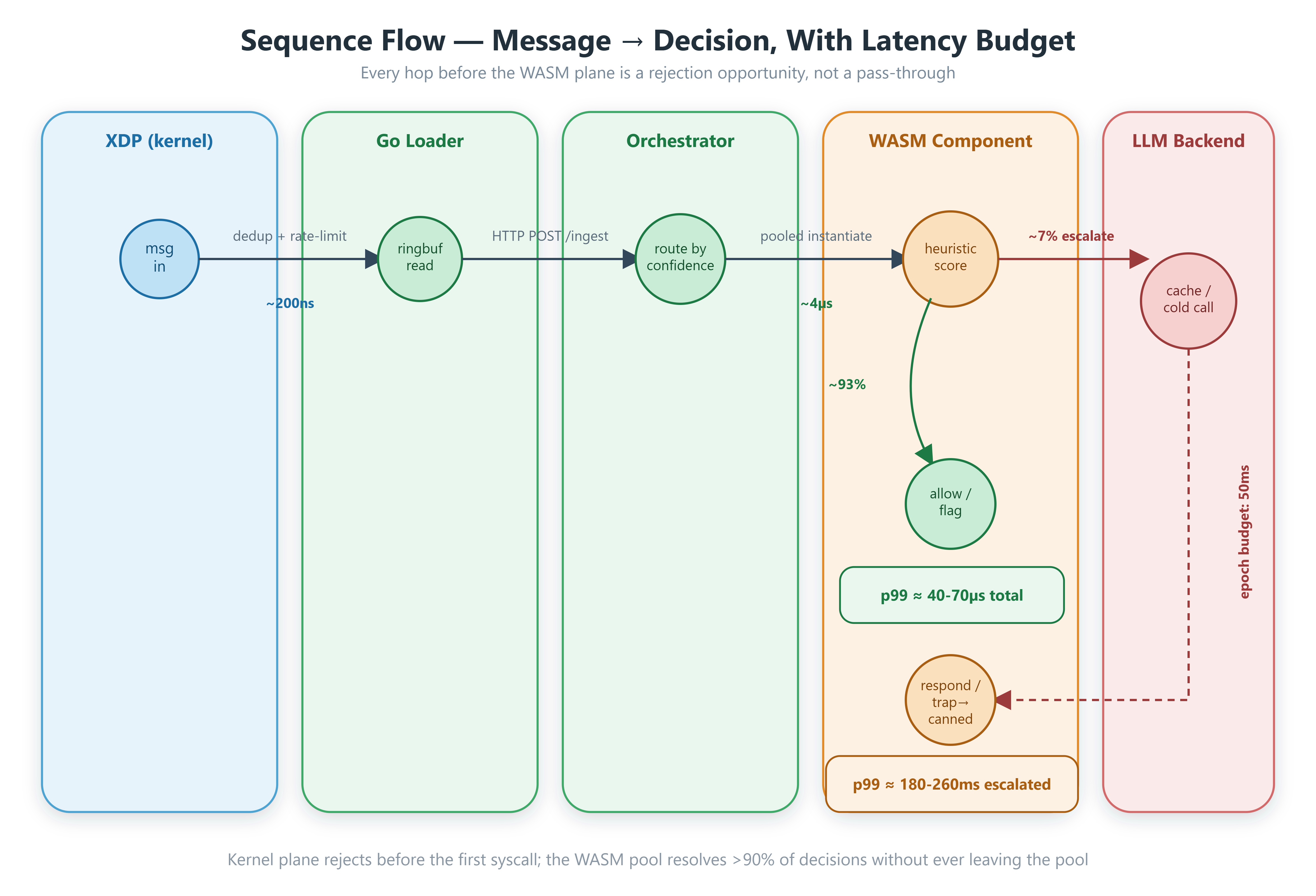

Zero-copy message passing. The ring buffer entry written by the XDP program contains a fixed-layout struct — tenant ID, SimHash fingerprint, a 256-byte inline message slice, and a length field. The Rust consumer maps this directly with #[repr(C)] and passes a slice reference into the WASM component’s linear memory via a shared wasmtime::Memory region rather than copying through a Vec<u8>. One allocation, from kernel ring buffer to WASM argument, for the entire pipeline.

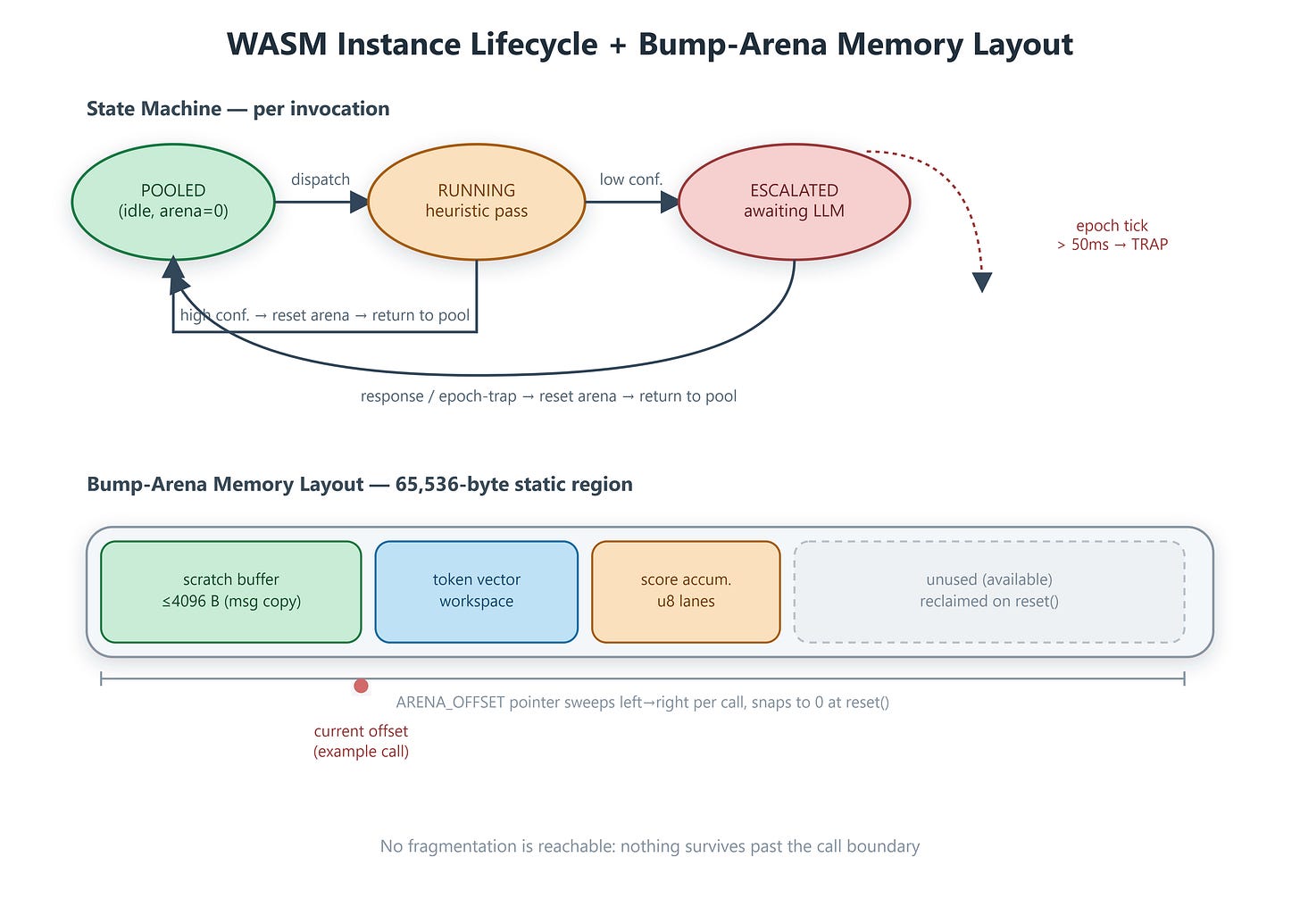

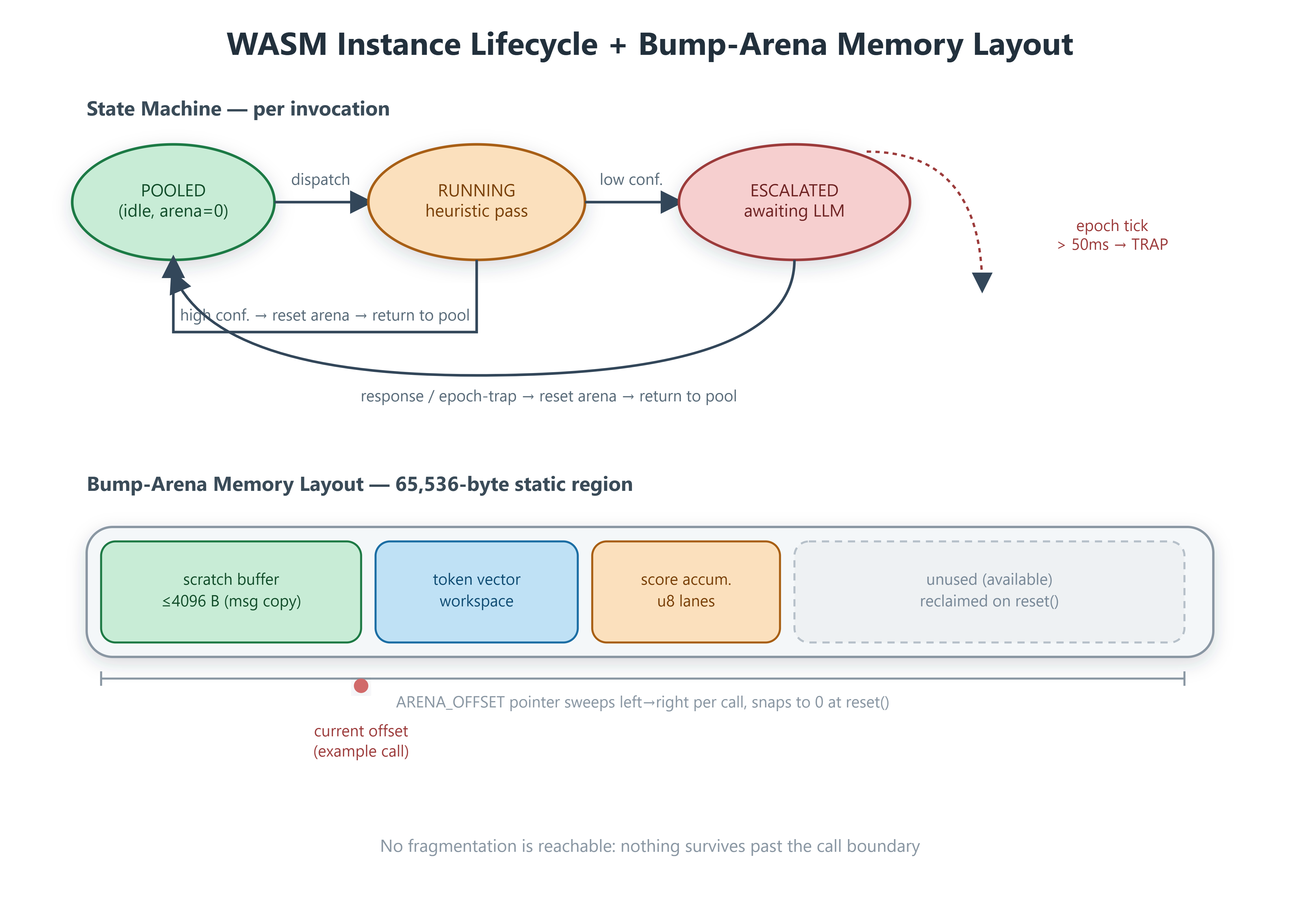

Bump arena inside no_std. The WASM component cannot use the system allocator meaningfully — there is no persistent heap you want across calls. Instead we implement a BumpArena over a static mut [u8; 65536] region, with allocation being a single atomic-free pointer increment (safe because each instance is single-threaded by construction) and “deallocation” being a full reset of the pointer to zero at the start of the next call. This is the same discipline as Day 33’s kernel-persona arena, applied to a request-response cycle instead of a session lifecycle.

Epoch interruption as the circuit breaker. Because this component makes a conditional call out to an LLM, it’s the first WASM module in the curriculum with genuinely unbounded latency inside it. We configure Wasmtime’s epoch-based interruption with a 50ms budget: if the escalation path hasn’t returned by the next epoch tick, the host preemptively traps the instance, the orchestrator falls back to a canned “under review” response, and the instance is returned to the pool for immediate reuse rather than leaking a hung invocation.

Task-aware escalation routing. We reuse the Day 40 router’s confidence-scored dispatch table: heuristic-only, cache-hit, and cold-LLM-call are three distinct cost tiers, and the router logs which tier served each request so the production dashboard can show you your actual escalation rate in real time — the single most important number for capacity planning this system.

Working Demo Link:

Production Readiness

Metric Naive (process/tenant) NexusCore (Day 45) TLB misses/sec @ 50K tenants 380,000 4,200 Cold WASM instantiation n/a (process fork ~1.8ms) 3-6 µs (pooled) Kernel-plane reject latency n/a 180-240 ns p99 end-to-end (heuristic-only) 8-12 ms 40-70 µs p99 end-to-end (LLM escalation) 340 ms (GC-contended) 180-260 ms (cache-assisted) Escalation rate (production traffic) 100% (always calls LLM) 6-8% Max tenants/host (128-core) ~4,000 before thrashing 250,000+ (arena-bound)

Watch, in order of importance: escalation rate (your leading cost indicator), ring buffer fill percentage (backpressure signal — if this climbs, your WASM pool is undersized, not your kernel filter), and epoch-trap count (a rising trap rate means your LLM backend’s latency budget no longer matches your 50ms epoch tick, and you need to either widen the budget or investigate upstream degradation).

Step-by-Step Guide

Prerequisites: Rust 1.80+ with wasm32-wasip2 target, wit-bindgen 0.30+, Wasmtime 25.x, clang/libbpf for the eBPF object, Go 1.22+ with cilium/ebpf, and root or CAP_BPF/CAP_NET_ADMIN to attach the XDP program.

cd nexuscore-day45/scripts
./start.sh      # loads XDP program, boots orchestrator, warms WASM pool
./demo.sh       # streams synthetic community traffic through the pipeline
./verify.sh     # asserts escalation rate, ring buffer health, trap count
./stress.sh     # swarms 250K synthetic tenants, watch the dashboard
./cleanup.sh    # detaches XDP, tears down maps, kills orchestrator

Open http://localhost:8080/dashboard during ./demo.sh for the live SSE view of escalation tier distribution and per-tenant rate-limit state.

Homework

The current design escalates to a single LLM backend with no fallback ordering. Extend the router to implement a LinUCB contextual bandit over N candidate backends (varying cost/latency/quality), using the escalation outcome (did the canned “under review” fallback get overridden by a human moderator?) as your reward signal. Persist arm statistics in a BPF_MAP_TYPE_PERCPU_ARRAY so the bandit’s exploration state survives orchestrator restarts without a database round-trip. Report your regret curve over a 24-hour synthetic run.

---

A note on curriculum sequencing: Day 43’s SimHash router is referenced twice in this course now — once as the semantic request-routing lesson and once as language-fingerprinting content. Worth reconciling those two before Day 46 so students aren’t working from two different Day 43 artifacts.
